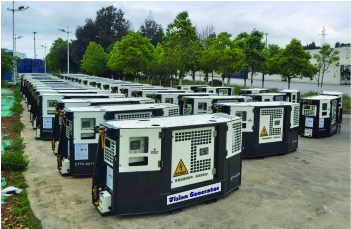

Reefer Generators (Clip-on Series)
Reliable Power Source for Refrigerated Container

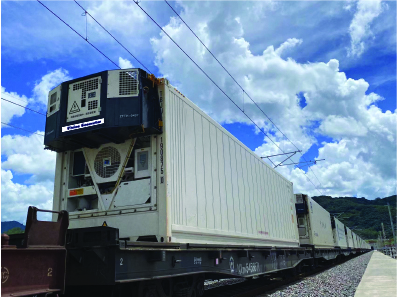

Refrigerated containers (reefers) rely on generator sets (gensets) for power when transported or stored without access to a fixed electrical grid, such as during sea, rail, or road transit.
Clip-on gensets, mounted directly to the reefer’s refrigeration unit, provide a conveniet solution for powering multiple reefers in these situations.
Specifications:
Generator Power Range
15kW (18.75kVA)
Fuel Tank Capacity
410L / 440L
Enough for long journey.
Fuel Consumption
1.7 ~ 3.0 Litres / Hr.
Enough for 10 days journey.
Operation Temperature Range
-40°C ~ 55°C
Ingress Protection
IP56 Dedicated high strength frame, fuel tank and panel
Collision Resistant upto 5 Gs 12V – 90AH, Maintenance-free battery
Engine

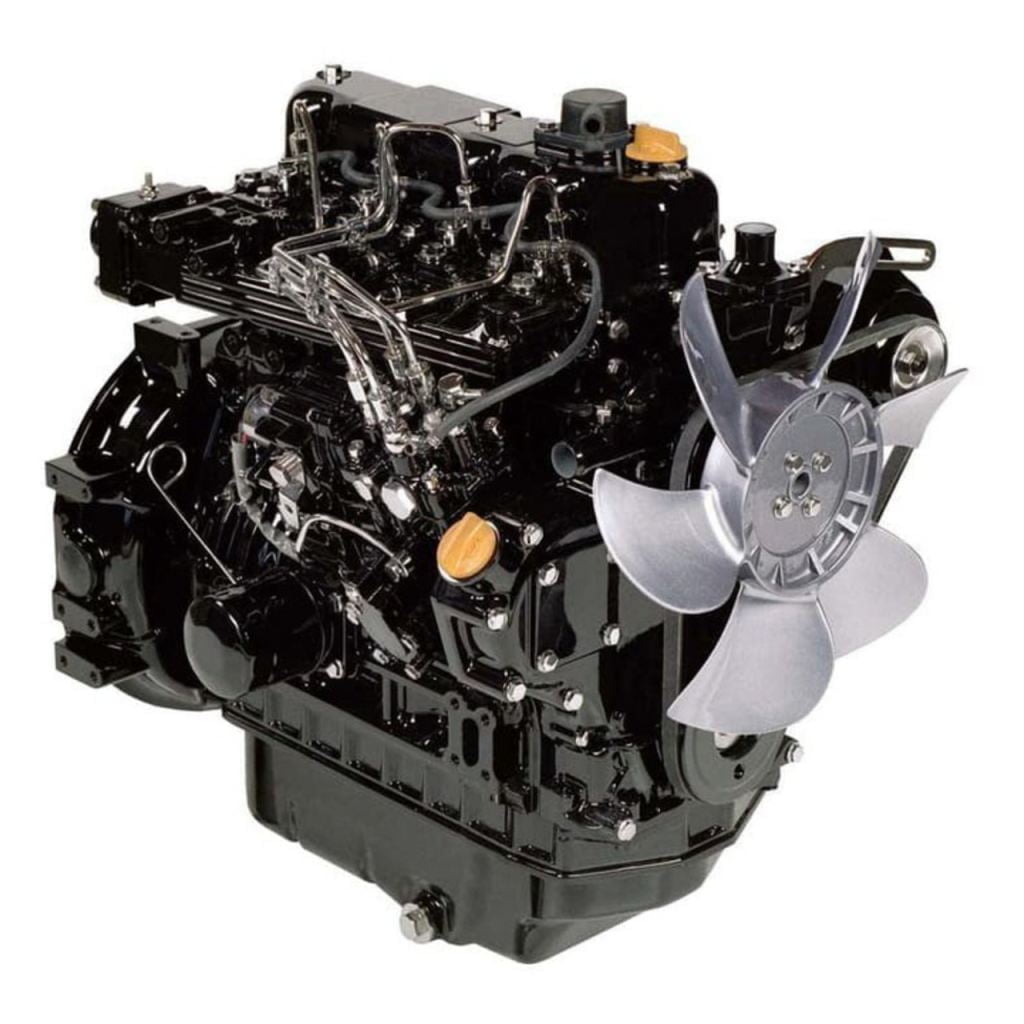

Engine YANMAR 4TNV88-GGHWC, 1800r/min
- 21.6 KWe Standby
- 19.6 KWe Prime
Emission Regulation
Stage V / Tier IV final
Air Cleaner
Heavy-duty oil bath filter air cleaner
Exhaust pipes and mufflers
Cooling fan and Dedicated plate structure radiator
Control System

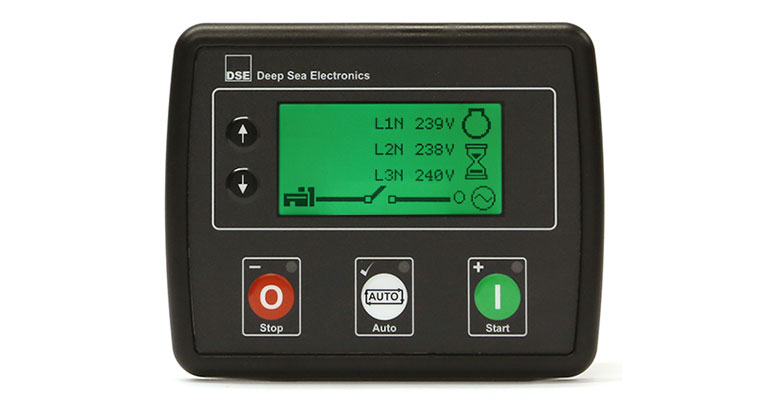

LCD Control Panel
Low Oil Pressure
High Coolant Temperature
Low Coolant Level
Overload
Over / Under Engine Speed
High / Low AC Voltage
Low Fuel Level
PMG Excited Alternator Customized for Reefer Container Operations
Rated Output
15kW, 460V, 60Hz, 3-Phases
Reefer Container Measured Power
Frequency Deviation: ±2.5%
6.5 ~ 7.5kW as per ISO 1496-2 Thermal Containers & Specification and Tensing
9.2.1 Ther nominal voltage between phases on the power socket
- 50Hz, 360V ~ 460V
- 60Hz, 400V ~ 500V
9.2.2 Under rated conditions, the maximum load of electrical equipment shall not exceed 18.75kVA and the power consumption shall not exceed 15kW
Installation & Durability

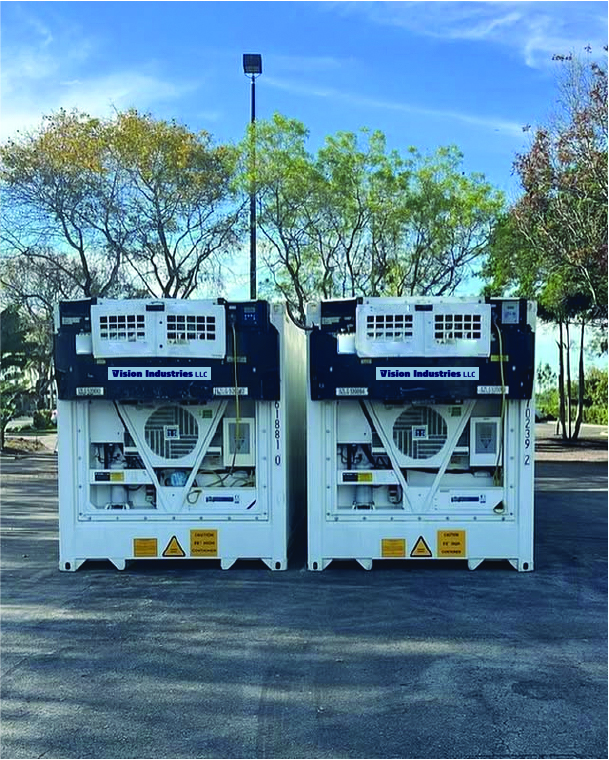

Clip-on generator sets are designed for quick and easy attachment to the front of ISO reefer containers. They can be installed or removed in just a few minutes using a system of quick-connect fittings at the upper corners and secure anchoring points near the bottom for added stability.
These generator sets are built with a robust, fully welded steel structure, capable of withstanding acceleration forces of 5g or greater in any direction.
Handling & Protection
For conveniet handling, forklift pockets are integrated into the base of the generator set. The design of these pockets includes close-ended features to prevent potential damage to the reefer unit during forklift operations.
Features & Benefits
Robust Construction
Steel frame with integrated steps for easy cleaning and durable powder-coating finish.
Efficient Cooling
Aluminium fin radiator for optimal performance.
High-Efficiency Generator
Stable voltage control and premium corrosion protection.
Enhanced Durability
Extended corrosion resistance for harsh environments.
User-Friendly Design
Ensures ease of use and simplified servicing.
Long-Term Value
A reliable investment built to last.
Optimized Performance
Greater efficiency, corrosion resistance, and reliability.
Extended Engine Life
Improved filtering capacity for longer engine life and extended maintenance intervals, leading to reduced costs and increased uptime.
Services & Support
for Reefer Genset
We specialize in providing comprehensive service and support for reefer gensets to ensure optimal performance and reliability. Our offerings include:
Maintenance & Repair
Expert care including routine maintenance, repairs, and refurbishments.
24/7 Emergency Assistance
Round-the-clock support to address any unexpected issues, ensuring minimal downtime.
Spare Parts Supply
Access to a wide range of OEM spare parts for quick and efficient repairs.
Custom Solutions
Tailored services for unique requirements, including modifications and auxiliary equipment installation.
Our dedicated team is committed to delivering high-quality solutions to keep your operations running smoothly.
Rental Reefer Gensets
Ensure Uninterrupted Cold Chain with Our Reefer Genset Rentals
Vision’s reefer generators for rent, featuring flexible plans designed to meet your unique requirment. We provide the reliable power you need for consistent temperature control in your refrigerated containers, whether in transit or storage. Protect your temperature-sensitive goods with our guaranteed power supply, available anytime, anywhere.
Our services cater to logistics, food transport, pharmaceuticals, and other industries, all supported by our dedicated 24/7 customer assitance to ensure smooth operations.
